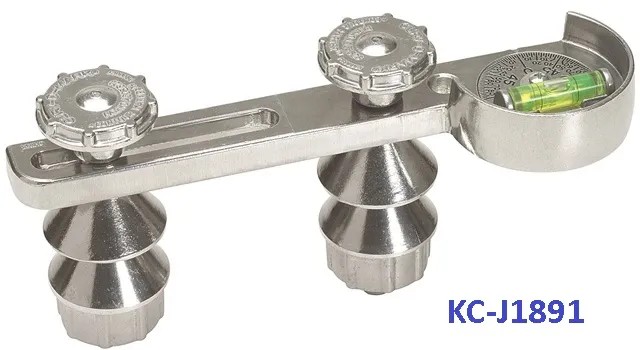

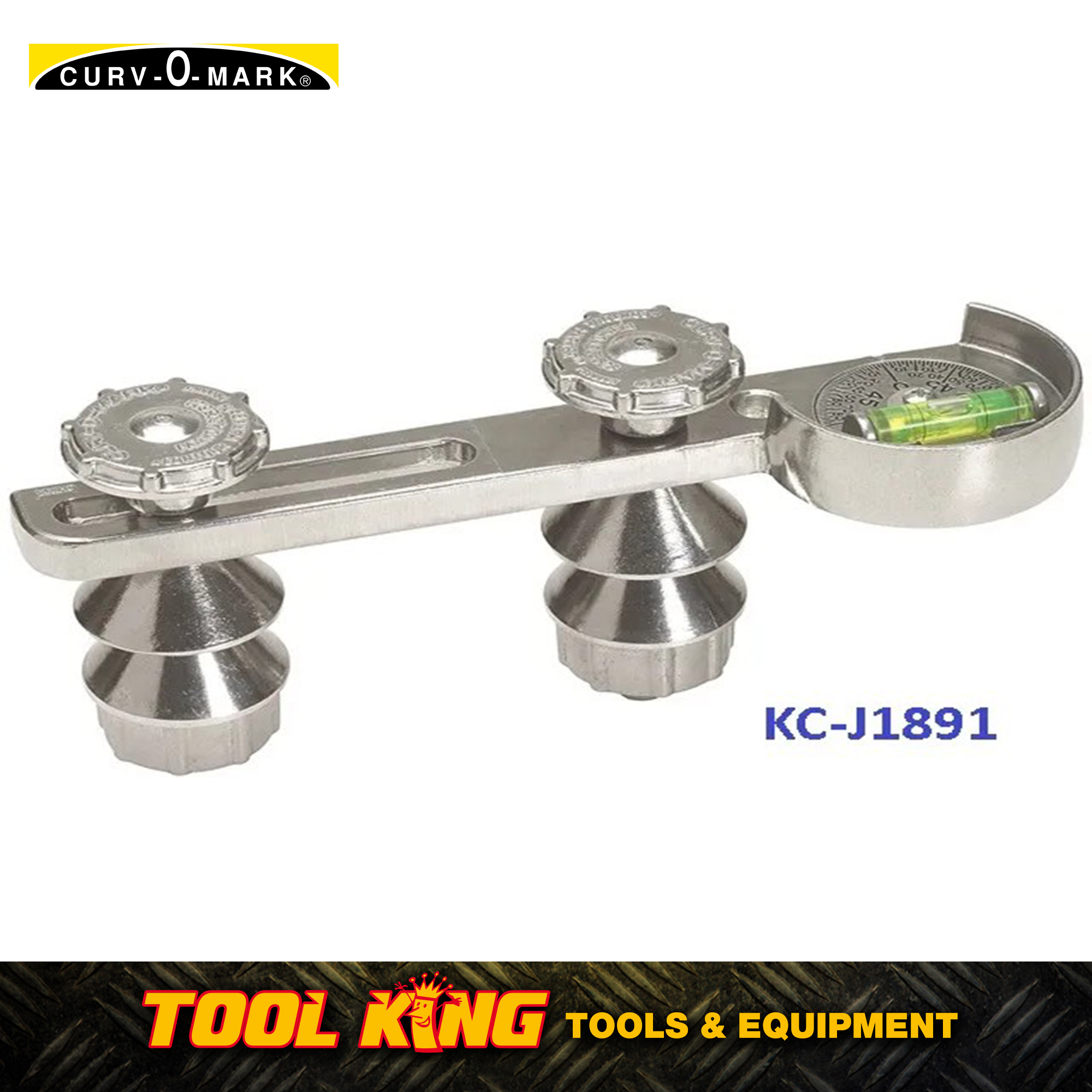

Curvomark Dial Angle Flange Level No.20

Made by curvomark, these flange levels are a versatile pipefitting tool used for pipe flange alignment, finding & setting angles, etc. Includes flange pins.

Features
Time saving
Quick and easy to use
Versatile tool that can be used as a dial degree utility level or, with attachments, for two-holing flange alignment
Unit Comes with a 2 threaded, self-aligning flange pins (conical spacer nut and bolts) for fastening the Level to a pipe flange
One of the flange pins is stationary, while the other slides up to 140mm (5-1/2 in) along a slot in the level to accommodate various flange bolt hole spacings from 50mm (2 in)
Flange pins fit bolt hole size from 15-44mm ID
Made of cast aluminum with a protective housing containing an adjustable DSL
The level bubble is protected from weld spatter and breakage with a built-in housing
140mm (5-1/2 in)
