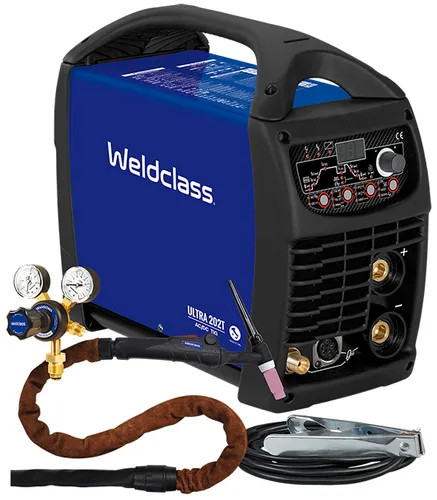

WELDCLASS ULTRA 202T AC/DC Pulse TIG Welder
Everything you expect from a European made 200A AC/DC TIG and then some! Outstanding TIG welding results on aluminium, steel & stainless, very easy-to-use controls, Dual input modes to allow use on 10A plug (fitted) or 15A plug, 200A output,
Stand-out features include: Easy-Pulse mode for beginners, Bi-Level manual toggle-from-torch mode, and unique SmartStart setting for very smooth arc ignition on aluminium. Plus European-made 8m #26 200A Super-Flex TIG torch with remote current adjustment, optional foot control & impressive Stick/MMA performance with VRD... and more!
10 Year Warranty
AT A GLANCE:
> 200A max output (TIG)
> Weld with up to 3.2mm tungsten electrodes
> Fitted with 10A 240V plug*
> Comes standard with 8m high quality European TIG torch
APPLICATION & CAPABILITY INFO
> TIG AC welding <200A in 15A mode, or <180A in 10A mode, of Aluminium and aluminium alloys up to 4-5mm max thickness
> TIG DC welding <200A in 15A mode, or <180A in 10A mode, of steel, stainless, copper & chrome molly up to 4-5mm max thickness
> Stick/MMA welding <160A in 15A mode, or <150A in 10A mode, with most common rods/electrodes (2.0-4.0mm)
KEY FEATURES:
> World-first 10-year warranty**
> Made in Italy to Weldclass specifications, in one of Europe's largest & most experienced welding machine manufacturing plants
> 30-day Money Back Guarantee***
> Dual Input Modes to allow use with either 10A plug (fitted) or 15A plug (optional)*
> Easy-to-use LCD Digital Controls with further settings info on top panel for quick reference
> European 8m #26 TIG torch with remote amp controls, flexi head, super-flex cable & leather cable cover
> Easy pulse mode for beginner operators
> Smart-Start ignition system for ultra smooth & reliable arc starting on Aluminium
> Bi-Level mode allows manual toggling between 2 set current levels from the torch
> Generator Compatible - min 7kva, ideal 10kva+
> Optional Foot Control (part no WC-06370)
> VRD function for safe & compliant Stick/MMA welding
> Compact, robust & portable (weighs 11kg)
> IP23 Protection - superior resistance to moisture & particles
FUNCTIONS
> Arc Ignition: HF or Lift-Arc
> Slope Up/Down: 0-10s
> Pre & Post Gas: 0-10s
> Pulse modes: Standard & Easy (automatic arc settings for simple operation)
> Non-Pulse Modes: Standard & Bi-Level (allows manual toggle between 2 current levels from the torch)
> AC Frequency: 10-200Hz
> Pulse Frequency: 1–99Hz
> Pulse Balance/Width: 1-99%
> Non-Pulse Balance (AC Square-wave): -80% (max penetration) to +80% (max cleaning)
> AC Smart-Start: Adjusts energy boost level when starting arc in AC
> Trigger modes: 2T, 4T, Spot
> Spot Weld Timer Adjustment 0.01–10s
> MMA Hot-Start Adjustment 0-100%
> MMA Arc-Force Adjustment 0-100%
INCLUDES:
> TIG Torch #26 Flexi 8m (remote control)
> Gas Regulator (made in Europe)
> Earth Lead 4m
> Parts Kit & Tungstens - 1.6 & 2.4mm
COMMON ACCESSORIES & SPARE PARTS
> Foot Controller (# WC-06370)
> Stick welding lead (# WC-06233)
> T100 Welding Trolley (# WC-06235)
> TIG Torch Spares
> Tungsten Electrodes
